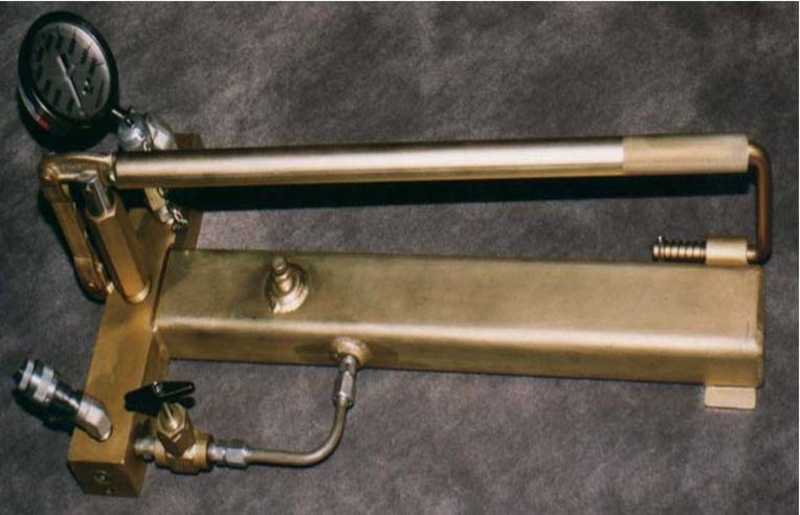

Pressure Gauge Calibration Unit

Model #: 7172-010
In Accordance with ANSI B40.1, the Model 7172-010, Pressure Gauge Calibration Unit, is a portable test unit which can be used to set and test U.S. manufactured gauges. This compact and lightweight unit can be easily carried around the hangar or to any remote jack location. The simple operation and simplistic design allows the operator to quickly calibrate gauges to airline calibration procedures while minimizing jack downtime.
Product Information
Master Gauge Accuracy 0.25%
Reservoir Capacity 0.5 gal 1.9 L
Gauge Length 27.25 inches 692 mm
Gauge Width 13.0 inches 330 mm
Gauge Height 13.0 inches 330 mm
Net Weight (Est.) 34 lb 15.4 kg

Standard Features
  • 0-10,000 PSI Master Gauge with (±0.25 Accuracy)
  • 0.5 Gallon Reservoir
  • Quick Disconnect Gauge Adapter
  • Gauge Adapter Receiver
  • Hand Jack Set (Tools necessary to calibrate gauges)
  • Manual Hand Pump
  • Manifold Pump Block
  • Spring Loaded Handle Stowage Lock. (Permits use of Pump Handle as Carrying Handle)
  • Uses Standard Petroleum Based Fluids
  • Cadmium Plated Exterior
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Factory New - 12 Month Warranty

Product Data Sheet:
 ⇓ Download PDF
