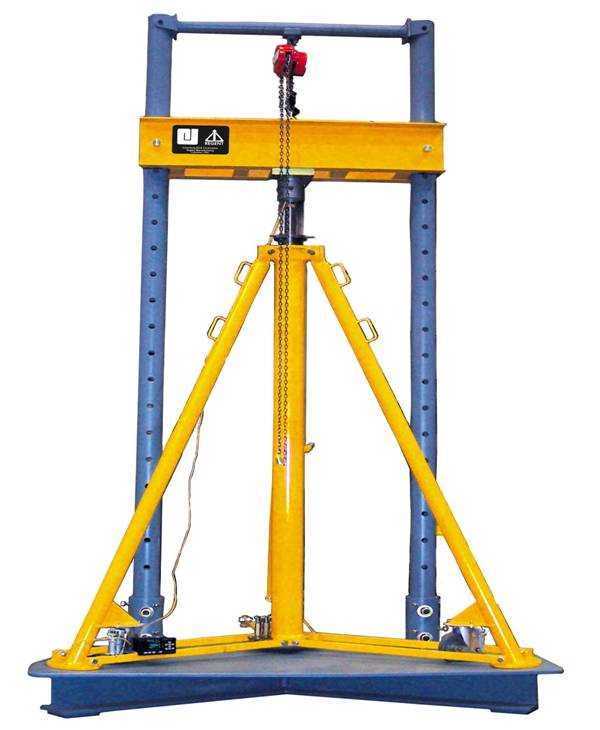

Portable Universal Jack Tester 67 Ton Capacity - Tripod Jacks & Axle Jacks

Model #: 7054-020
Our static Universal Jack Testers are designed to provide accurate load testing of both Tripod and Axle Jacks built by any hydraulic jack manufacturer. This tester is portable. An electronic load cell and digital electronic read-out provide easy and accurate readings. Rugged construction provides many years of continuous service, even in harsh environmental conditions.
Product Information
Vertical Capacity 67.0 60.8
Min. Opening (Height) 8.0 203
Max. Opening (Height) 152.0 3861
Opening (Width) 58.0 1473
Overall Structure Height 218 5537
Base Dimentions 124x112 3150x2845
Net Weight 7750 3516
Crated Weight 11200 5080

Standard Features
  • 67 Ton Jack Capacities in any load beam position
  • Cross Beam supports Manual Hoist
  • 1 Piece Base Assembly supports columns, cross beam and adjustable load beam
  • Power Requirements - 110 VAC, 1 Phase, 50/60 Hertz for load cell readout
  • Manual Chain Hoist to raise and lower adjustable load beam
  • Adjustable Load Beam in increments of 8 inches and painted High-Visibility Yellow
  • Electronic Load Cell housed within adjustable load beam
  • Electronic Digital Read-Out and Control Box provides digital read-out of load and controls the raising and lowering of adjustable load beam
  • Finish - Skydrol Resistant Gray Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Warranty

Product Data Sheet:
  Download PDF
