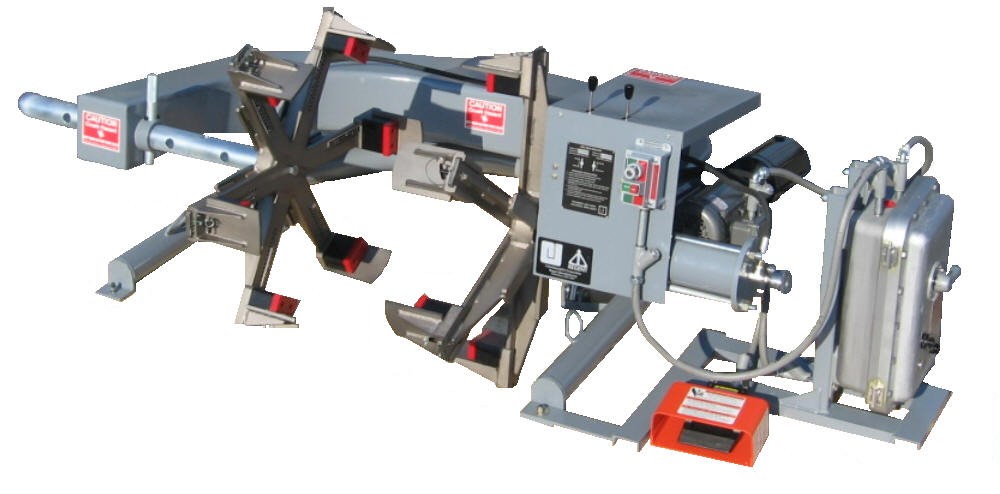

Tire Bead Breaker 25,200 Lb Capacity

Model #: 715J1000EX (Explosion Proof Electrically Operated)
Our Bead Breakers are designed and built to meet or exceed the most demanding requirements of the international ground support wheel shops and provide low maintenance operation. They will withstand harsh environmental conditions, rugged use and provide many years of long and dependable service. Most of our Bead Breakers are ringless and can support all rotary wing, fighter, general aviation, commuter, regional, narrow and wide body aircraft with bias and radial tires. All Bead Breaker Fingers are easily adjusted to the diameter of the wheel assembly.
Product Information
Rim Diameter RangeMin. - Max. 11.0 – 32.0 inches 426-889
Tire Width Capacity 28.0 711
Length 53.2 1351
Width 69.0 1753
Height 35.0 889
Net Weight (Est.) 1500 680

Standard Features
  • 25,200 Lb capacity
  • Universal Transformer operates on all major electrical voltages for electrical model
  • Bead Breaker frame hydraulically raises to center of tire assembly
  • Twelve (12) each Adjustable Spades for bias & radial tires
  • Fingers mechanically adjusted
  • Standard 'O' Rings with Back-up Rings
  • No special tools required
  • Skydrol Resistant Yellow Paint or to customer specifications
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty

Product Data Sheet:
  Download PDF
