Rhino Axle Jack 65 Ton Capacity

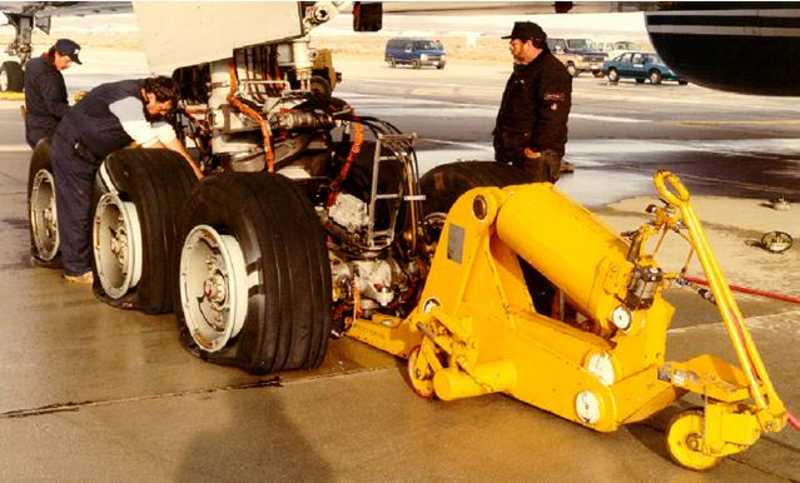

Model #: 6504-55The Rhino Jack is designed for use with multiple flat tires where minimum clearance is available. With excellent mobility characteristics it is easily positioned under the aircraft. Mechanical safety lock nuts permit two or more wheels to be removed simultaneously. It is available with optional sling and crane assembly to remove wheels and brakes from axle.
| Product Information | ||
| Minimum Height | 4.5 inches | 114 mm |
| Hydraulic Lift | 24.0 inches | 610 mm |
| Maximum Height | 28.5 inches | 723 mm |
| Roll Under Height | 4.5 inches | 114 mm |
| Length | 103.5 inches | 2,629 mm |
| Height of Jack Up | 41.5 inches | 1,054 mm |
| Height of Jack Down | 46.5 inches | 1,181 mm |
| Width of Base | 8.5 inches | 216 mm |
| Width | 38.0 inches | 965 mm |
| Reach Depth Base | 30.0 inches | 762 mm |
| Overall Length | 149.0 inches | 3,785 mm |
| Width of Arm | 4.0 inches | 102 mm |
| Available Optional Equipment | 5923-D Wheel/Brake Sling Assembly 5923-E Wheel/Brake Crane Assembly | |
Standard Features
- 65 Ton Capacity
- Manual Hand Pump
- Air Powered Pumping Unit
- Rapid Lifting Arm Extension To Jacking Point with No Load
- Mechanical Lock Nut
- Mechanical Jack Frame Lowering Devices on both Trailing Casters
- Single External Relief Valve
- Tow Bar Assembly - Maximum Towing Speed 3 MPH
- 8" Diameter Casters with Poly Tread
- Skydrol Resistant Yellow Paint
- Operation & Maintenance Manual
- Certificate of Conformance
- Load Test Report
- Factory New - 12 Month Written Warranty
Product Data Sheet:
