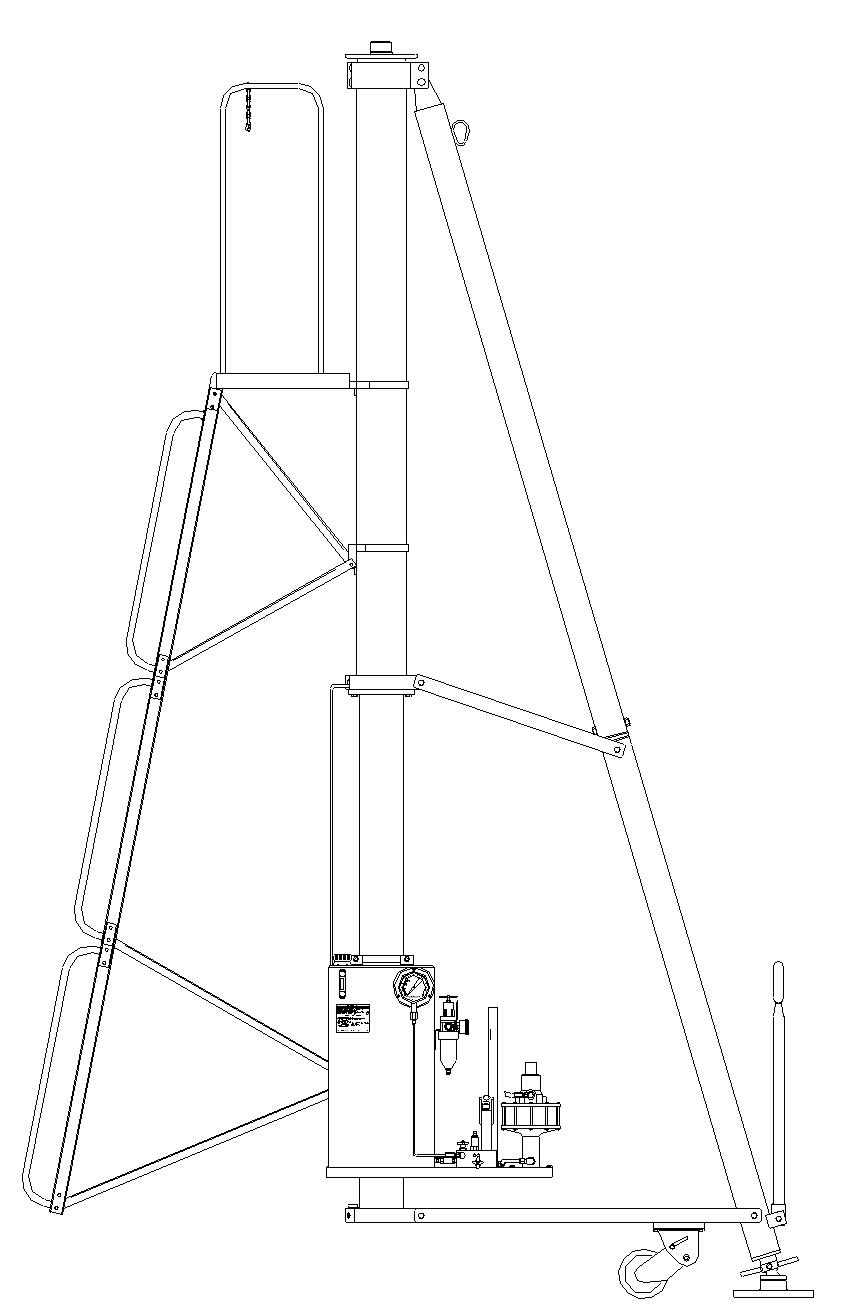

Fixed Height Tripod Jack
Model #: 15188-35Our Fixed Height Tripod Jacks are used on and for specific aircraft jacking applications during normal aircraft maintenance checks. Our tripod jacks are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service.
| Product Information | ||
| Vertical Capicity | 15 | 13.6 |
| Minimum Height | 188 | 4775 |
| Hydraulic Lift | 85.0 | 2159 |
| Scew Extension | 12.0 | 305 |
| Maximum Extended Height | 285 | 7239 |
| Crated Weight (Est.) | 2900 | 1315 |
| Crate Dimensions | (40x36x40)(110x35x36)(105-35x40) | (1016x914x1016)(2794x635x914)(2667x889x1016) |
| Cubic Feet Crated | 175 | 5.0 |
Item Download:
Detailed Specifications - PDF
