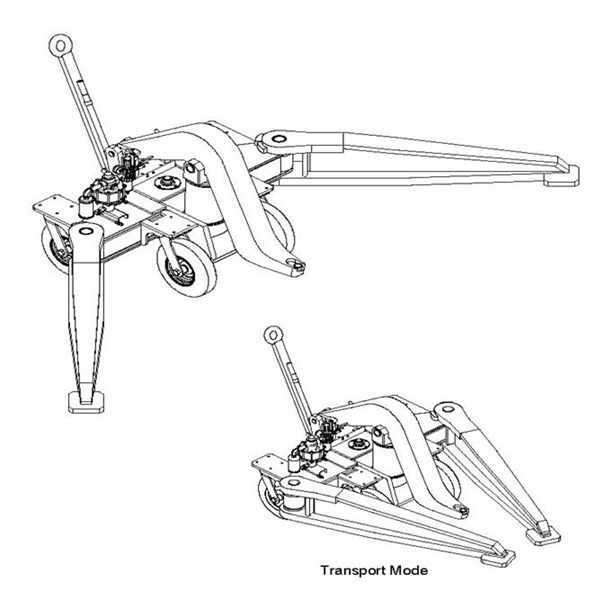

Rhino Axle Jack 50 Ton Capacity

Model #: 5004-55
The Rhino Jack is designed for use with multiple flat tires where minimum clearance is available. With excellent mobility characteristics it is easily positioned under the aircraft. Mechanical safety lock nuts permit two or more wheels to be removed simultaneously. It is available with optional sling and crane assembly to remove wheels and brakes from axle.
Product Information
Minimum Height 4.0 inches 102 mm
Hydraulic Lift 20.5 inches 521 mm
Maximum Height 24.5 inches 622 mm
Ground Clearance 4.0 inches 102 mm
Height of Jack Up 49.5 inches 1,257 mm
Height of Jack Down 31.5 inches 800 mm
Width of Base 16.5 inches 419 mm
Width 69.0 inches 1,753 mm
Reach Depth Base 28.0 inches 711 mm
Overall Length 93.0 inches 2,362 mm
Width of Arm 5.0 inches 127 mm
Available Optional Equipment 1031-4000 Wheel/Brake Crane and Sling Assembly

Standard Features
  • 50 Ton Capacity
  • Dual Manual Hand Pump
  • Air Powered Pumping Unit
  • Mechanical Lock Nut
  • Single External Relief Valve
  • Tow Bar Assembly - Maximum Towing Speed 5 MPH
  • 8" Diameter Casters with Poly Tread
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Written Warranty
Item Download:
Detailed Specifications - PDF
