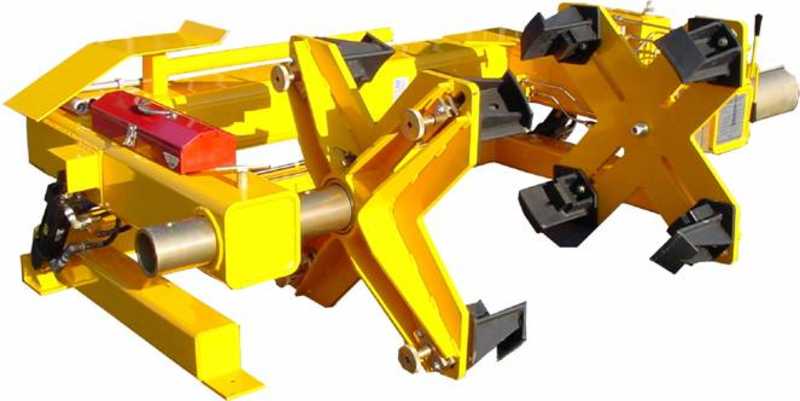

Tire Bead Breaker 35,000 Lb Capacity

Model #: 7003-020
Our Bead Breakers are designed and built to meet or exceed the most demanding requirements of the international ground support wheel shops and provide low maintenance operation. They will withstand harsh environmental conditions, rugged use and provide many years of long and dependable service. Most of our Bead Breakers are ringless and can support all rotary wing, fighter, general aviation, commuter, regional, narrow and wide body aircraft with bias and radial tires. All Bead Breaker Fingers are easily adjusted to the diameter of the wheel assembly.
Product Information
Rim Diameter RangeMin. - Max. 12.5 - 32.5 inches 318 - 826 mm
Tire Width Capacity 26.0 inches 660 mm
Length 57.0 inches 1,447 mm
Width 106.0 inches 2,692 mm
Height 30.0 inches 762 mm
Air Pressure Required 90 psi 6.2 bars
Air Volume 120 scfm 56.6 dm³/s
Net Weight (Est.) 1,850 lb 840 kg

Standard Features
  • 35,000 Lb Capacity
  • Air Driven Hydraulic Pump
  • Bead Breaker frame hydraulically raised to center of tire assembly
  • Four (4) each Adjustable Spades for bias & radial tires on each side
  • Fingers mechanically adjusted
  • Standard 'O' Rings and Teflon Back-up rings
  • Tire beads are hydraulically broken from one side
  • Small Wheel Ramp
  • No special tools required
  • Skydrol Resistant Yellow Paint or to customer specifications
Documentation
  • Operation and Maintenance Manual
  • Load Test Report
  • Certificate of Conformance
  • Factory New - 12 Month Written Warranty

Product Data Sheet:
  Download PDF
