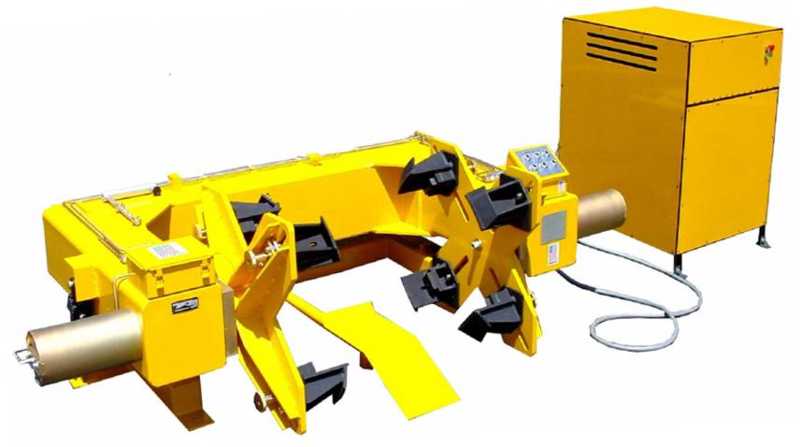

Tire Bead Breaker 60,000 Lb Capacity

Model #: 9323-020
Our Bead Breakers are designed and built to meet or exceed the most demanding requirements of the international ground support wheel shops and provide low maintenance operation. They will withstand harsh environmental conditions, rugged use and provide many years of long and dependable service. Most of our Bead Breakers are ringless and can support all rotary wing, fighter, general aviation, commuter, regional, narrow and wide body aircraft with bias and radial tires. All Bead Breaker Fingers are easily adjusted to the diameter of the wheel assembly.
Product Information
Tire Width Capacity 22.0 inches 559 mm
Length 62.0 inches 1,575 mm
Width 120.0 inches 3,048 mm
Height 36.0 inches 914 mm
Net Weight (Est.) 2,650 lb 1,202 kg
Rim Diameter RangeMin. - Max. 12.0 - 41.0 inches 305-787.4 mm

Standard Features
  • 60,000 Lb Capacity
  • Two (2) Hydraulic Cylinder Assemblies
  • Electric Driven Hydraulic Pump
  • Universal Transformer operates on all major electrical voltages
  • Bead Breaker frame hydraulically raised to center of tire assembly
  • Eight (8) each Adjustable Spades for bias & radial tires
  • Fingers mechanically adjusted
  • Standard 'O' Rings and Teflon Back-up rings
  • Tire beads are hydraulically broken from one side
  • Small Wheel Ramp
  • No special tools required
  • Skydrol Resistant Yellow Paint or to customer specifications
  • Operation and Maintenance Manual
  • Load Test Report
  • Certificate of Conformance
  • Factory New - 12 Month Written Warranty
