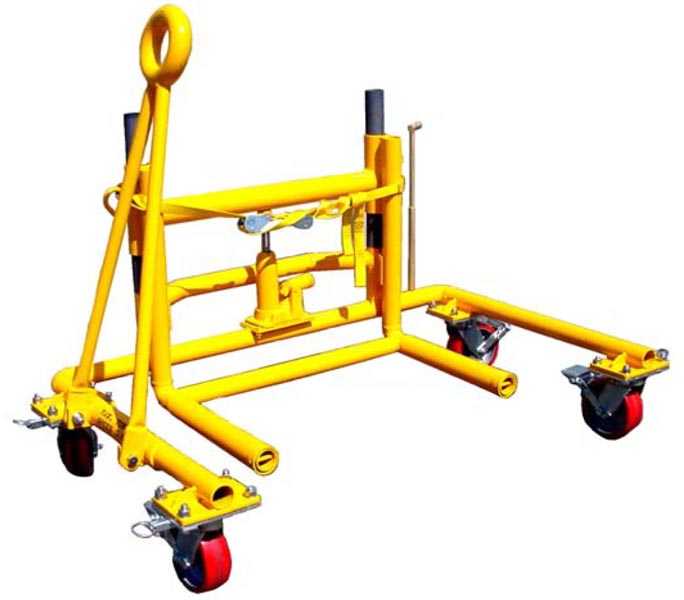

Wheel & Brake Dolly 750 Lb Capacity

Model #: 9092-016
The Wheel & Brake Dolly is used worldwide by most major airlines, making wheel changes a one person operation. It is a portable self-contained unit capable of handling and transporting either a wheel/tire or brake assembly during the removal from or installation on an aircraft. A single speed, hand operated hydraulic jack is centrally located on the dolly structure to provide vertical lift. A release valve is provided on the jack for lowering the dolly. Our Wheel & Brake Dolly is built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service.
Product Information
Capacity 750 340
Minimum Tire Diameter 30.0 762
Maximum Tire Diameter 55.0 1397
Width 45 1143
Height 29.0 737
Length 36.0 914
Net Weight 275 125
Crated Weight 375 170
Crate Dimensions 38L x 47W x 37H 965L x 1194W x 940H
Cubic Feet Crated 38.2 1.1

Standard Features
  • Minimum Weight and High Capacity
  • Manual Hand Pump Assembly
  • Hydraulic Lifting Cylinder Assembly
  • Brake Cradle Assembly
  • Tow Bar Assembly
  • 6" Diameter Poly Tread Casters for ease of maneuvering
  • Rollers for aligning Wheel Assembly
  • Strap Restraints for the Wheel Assembly
  • Tow Bar Assembly, 3 mph maximum speed
  • Skydrol Resistant Yellow Paint
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 12 Month Warranty

Product Data Sheet:
  Download PDF
