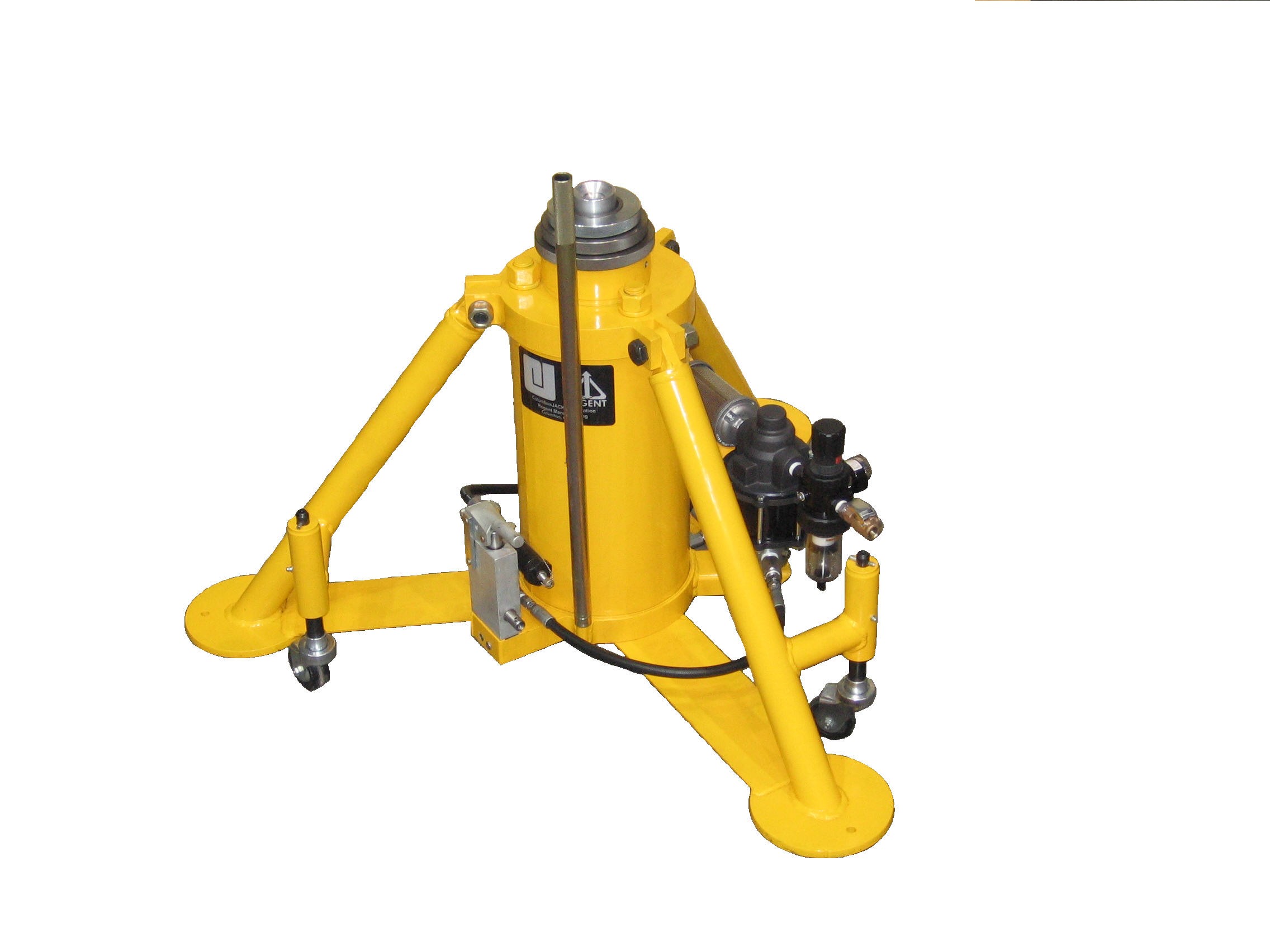

Universal Tripod 2 Stage Jacke 10 Ton Capacity

Model #: 1024-35(2)
Our Universal Height Tripod Jacks are used on and for a variety of aircraft jacking applications (Narrow & Wide Body) during normal aircraft maintenance checks. These jacks provide the customer with a variety of low minimum height tripod jacks with two stages of hydraulic lift for low and high wing, nose and tail jacking applications. They are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service. The automatic safety by-pass valve prevents the lifting of a load greater than the capacity of the jack. Threaded rams with mechanical lock nuts prevent lowering of the jack under load in case of hydraulic leakage. Our Universal Tripod Jacks meet or exceed all known commercial and/or military requirements and specifications, and are cycle tested, load tested and proof-load tested to ensure the jack’s hydraulic and structural integrity. We guarantee our customer a quality and dependable product and assure them of our continued product support regardless of the age of the jack.
Product Information
Vertical Capacity 10.0 9.1
Minimum Height 24.0 610
Hydraulic Lift 36.0 914
Screw Extension 4.0 102
Maximum Extended Height 64.0 1626
Net Weight (Est) 245 111
Crated Weight (Est) 300 136
Crate Dimensions (Est. L x W x H 45 x 45 x 32 1143 x 1143 x 813
Cu Ft Crated (Est) 38 1.1

Standard Features
  • Two (2) Hydraulic Stages with Mechanical Lock Nuts
  • Air Pump and Hand Pump for ease of operation
  • Skydrol Resistant Yellow Paint or to customer specifications
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 36 Month Written Warranty
