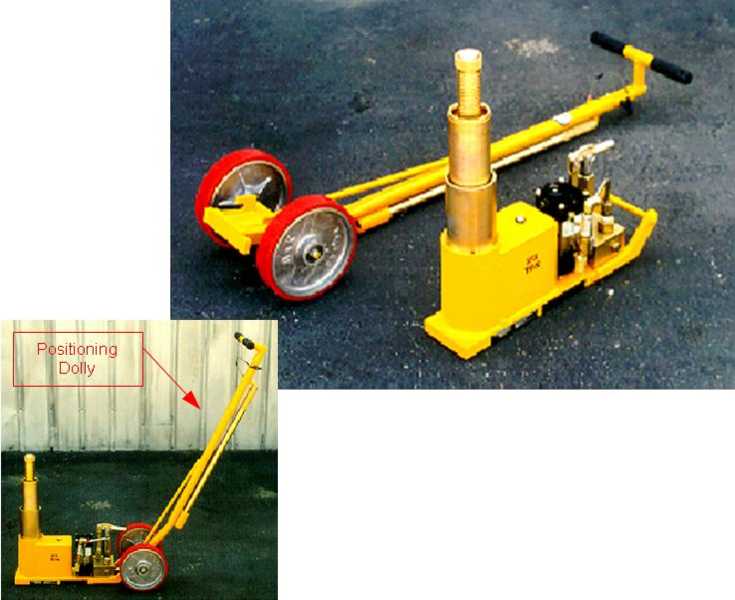

Hand Carry Axle Jack 25 Ton Capacity

Model #: 9346-010
Our Hand Carry Axle Jacks are designed to meet jacking specifications for normal tire/wheel and brake replacement, and in most cases for both main and nose landing gears for most business, commuter and wide body airplanes. This jack provides maximum capacity within a light weight and compact configuration for ease of carrying and transporting to the jacking site. Our Hand Carry Axle Jacks are completely self-contained with manual hand pump. Our Model 9346-010 contains an air powered pumping unit and a handling and positioning dolly.
Product Information
Minimum Height 8.0 inches 203 mm
Hydraulic Lift 10.0 inches 254 mm
Screw Extension 4.0 inches 102 mm
Maximum Height 22.0 inches 559 mm
Width 4.5 inches 114 mm
Length 16.75 inches 425 mm
Max. Height of Rocker Arm 10.0 inches 254 mm
Net Weight (Est.) 90 lb 41 kg

Standard Features
  • 25 Ton Capacity
  • Manual Hand Pump
  • Air Powered Pumping Unit
  • Positioning Dolly with Pump Handle Storage
  • Pump Handle Weldment
  • Carrying Handle
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 12 Month Warranty

Product Data Sheet:
  Download PDF
