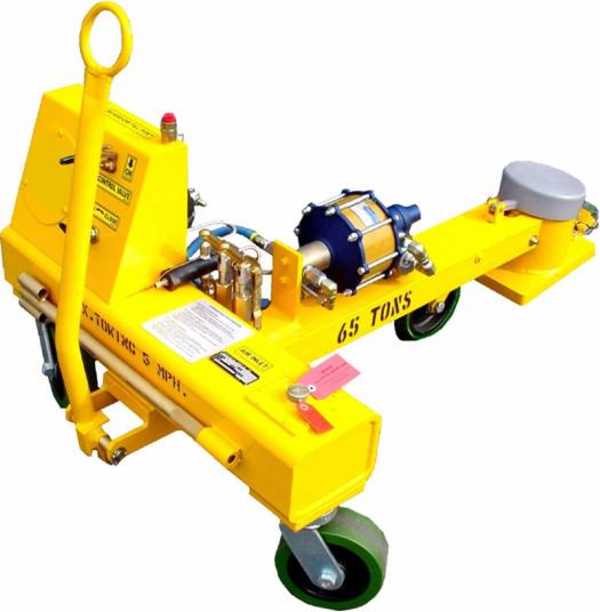

Power Retract™ Alligator Axle Jack 65 Ton Capacity

Model #: 2265-10 PR
Our Double-Acting Alligator Axle Jacks are configured and designed for normal wheel/tire and brake changes. The cylinder head comes mounted on a T- frame with three casters for ease of maneuvering and centering the jack under the jacking point. After the work has been accomplished and the release valve has been opened, the accumulator (Power-Retract™) will fully retract the rams automatically back down inside the cylinder. Optional Dual Reading Pressure Gauges are available. The Double-Acting Alligator Axle Jacks are designed and built to meet or exceed the most demanding requirements of the international ground handling market and to withstand harsh environmental conditions, rugged use and to provide many years of long and dependable service.
Product Information
Minimum Height 10.0 inches 254 mm
Hydraulic Lift 11.0 inches 279 mm
Screw Extension 5.0 inches 127 mm
Maximum Height 26.0 inches 660 mm
Width of Base 8.75 inches 222 mm
Length of Base 14.0 inches 356 mm
Center of Base 7.0 inches 178 mm
Depth of Base 46.50 inches 1,181 mm
Length of Jack 69.0 inches 1,753 mm
Width of Jack 36.0 inches 914 mm
Net Weight (Est.) 500 lb 227 kg
Available Optional Equipment Dual Reading Pressure Gauge Assembly (Reads in Tons/PSI)

Standard Features
  • 65 Ton Power Retract™ Cylinder Assembly with Spring Loaded Trailing Caster for support during towing
  • Single Valve Control for ease of operation
  • Dual Manual Hand Pumps (One High Pressure, Low Volume and one Low Pressure, High Volume)
  • Air Powered Pumping Unit
  • Nitrogen Charged Accumulator is used for Power Cylinder Ram Retraction
  • Double Pump Handle Assembly
  • Hydraulic Restrictor Valve slows and controls cylinder descent in the event of a hose failure
  • 8" diameter Poly Tread Swivel Casters
  • Vented Filler Cap with Dip Stick
  • Hard Chrome Plated minimum 0.001 on a side of Cylinder and Ram Bores
  • Protective Cylinder Rain Cover
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Proof-load 150% of Rated Vertical Capacity
  • Load Test Report
  • Factory New - 12 Month Written Warranty
