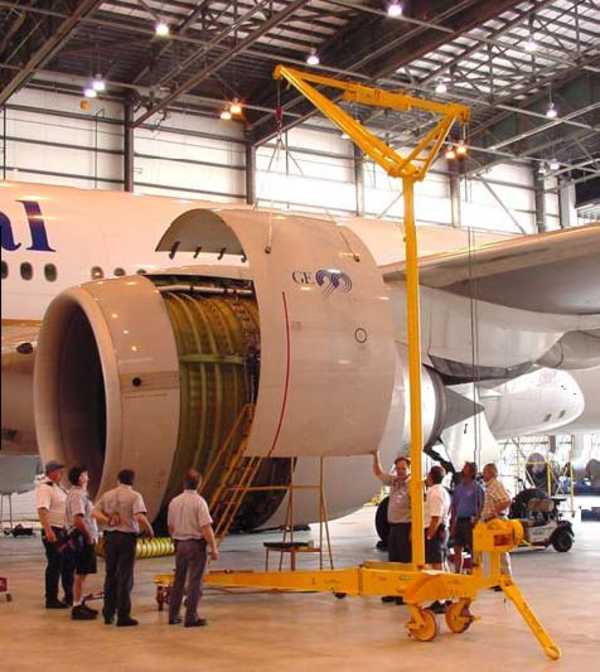

Portable Floor Crane 1,000 Lb Capacity

Model #: 9601-010
Our Portable Floor Cranes are designed and built to meet or exceed the most demanding requirements of the international ground support markets, both commercial and military applications, and to withstand harsh environmental conditions, rugged use and to provide many years of long and dependable service. The Portable Floor Cranes are designed to lift 1,000 to 8,300 pounds at any height, depending on the model. They are air transportable with tie down, and with the outriggers and mask properly stored and secured it can be towed at 5 MPH in the Transport Mode. Our low maintenance Portable Floor Cranes can be deployed by one person and are manually erected and operated by a single winch.
Product Information
Max. Hook Height 246/252/258/264 inches 6,248/6,401/6,553/6,706 mm
Max. Horizontal Reach 127/123/119/115 inches 3,226/3,124/3,023/2,921 mm
Maximum Towing Speedsup1/sup 5 mph 8.0 kph
No. of Casters 4
Caster Size 12 inches 305 mm
Ramp Mobility 20 º
Mobility Air Transportable
Net Weight (Est.) 2,200 lb 998 kg

Standard Features
  • 1,000 Lb capacity at any height
  • Air transportable with Tie Down Rings
  • 12" Poly Tread Swivel Casters with Swivel Locks and Caster Brakes
  • Completely self-contained with manually operated Winch
  • Rapid Deployment - No Tools Required
  • Towable up to 5 mph in Transport Mode
  • High degree of reliability
  • Very low maintenance
  • Used in adverse environments
  • Skydrol Resistant Yellow
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 12 Month Written Warranty

Product Data Sheet:
  Download PDF
