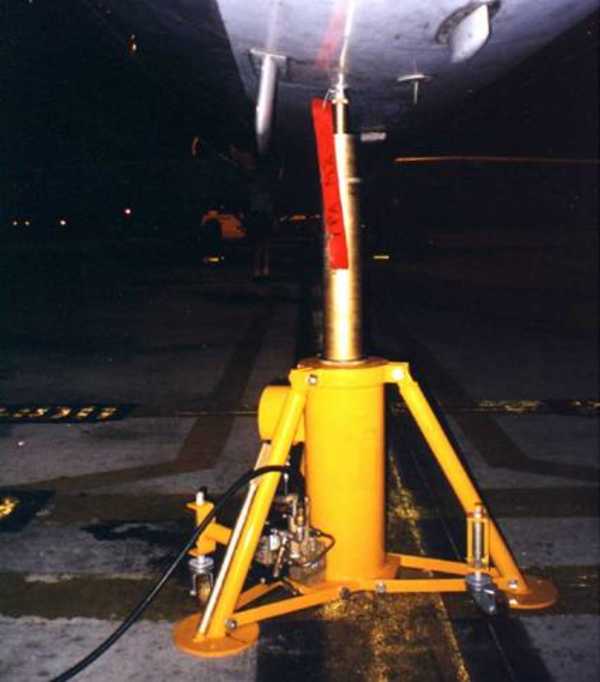

Universal Tripod 2 Stage Jack 10 Ton Capacity

Model #: 8018-010
Our Universal Height Tripod Jacks are used on and for a variety of aircraft jacking applications (Narrow & Wide Body) during normal aircraft maintenance checks. These jacks provide the customer with a variety of low minimum height tripod jacks with two stages of hydraulic lift for low and high wing, nose and tail jacking applications. They are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service. The automatic safety by-pass valve prevents the lifting of a load greater than the capacity of the jack. Threaded rams with mechanical lock nuts prevent lowering of the jack under load in case of hydraulic leakage. Our Universal Tripod Jacks meet or exceed all known commercial and/or military requirements and specifications, and are cycle tested, load tested and proof-load tested to ensure the jack’s hydraulic and structural integrity. We guarantee our customer a quality and dependable product and assure them of our continued product support regardless of the age of the jack.
Product Information
Vertical Capacity 10.0 ton 9.1 m tonnes
Min. Height 24.0 inches 610 mm
Hydraulic Lift 36.0 inches 914 mm
Screw Extension 4.0 inches 102 mm
Max. Height 64.0 inches 1,626 mm
Net Weight (Est.) 245 lb 111 kg
Available Optional Equipment Air Powered Pumping Unit
Dual Reading Pressure Gauge Assembly
Adjustable Leveling Footpads with Bubble Level
Tow Bar Assembly with Caster Locks

Standard Features
  • Two (2) Hydraulic Stages with Mechanical Lock Nuts
  • Spring Loaded Swivel Casters
  • Skydrol Resistant Yellow Paint or to customer specifications
Available Optional Equipment
  • Dual Reading Pressure Gauge Assembly
  • Air Powered Pumping Unit
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 36 Month Written Warranty

Product Data Sheet:
  Download PDF
