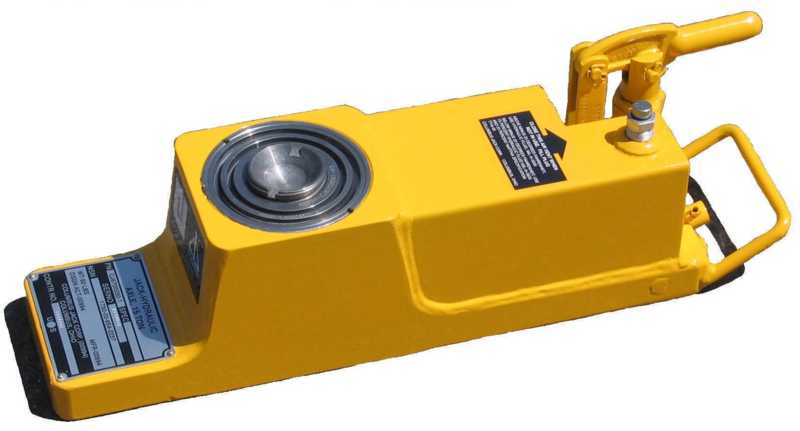

Hand Carry Axle Jack 15 Ton Capacity
Model #: 1504-50Our Hand Carry Axle Jacks are designed to meet jacking specifications for normal tire/wheel and brake replacement. These self-contained jacks come with a manual hand pump and provide maximum capacity within a lightweight and compact configuration for ease of carrying and transporting to the jacking site
| Product Information | ||
| Vertical Capacity | 15.0 ton | 13,608 kg |
| Minimum Height | 4.75 inches | 121 mm |
| Hydraulic Lift | 7.63 inches | 194 mm |
| Screw Extension | 2.56 inches | 65 mm |
| Maximum Height | 14.94 inches | 380 mm |
| Net Weight (Est.) | 50 lb | 23 kg |
| Overall Dimensions(L x W x H) | 21 x 9 x 11 inches | 533 x 229 x 279 mm |
| Width of Base | 4.5 | 114 |
| Length of Base | 17.25 | 438 |
| Max Height Rocker Arm | 9.81 | 249.2 |
| Center Rocker Arm | 9.12 | 231.6 |
| Net Weight (Est.) | 60 | 31.8 |
| Crated Weight (Est.) | 75 | 31.8 |
| Crate Dimensions (Est.) | 19 x 7 x 9 | 483 x 178 x 229 |
| CU Ft Crated (Est.) | .7 | .02 |
Standard Features
- 15 Ton Capacity
- Manual Hand Pumps
- Pressure Relief Valve Assembly
- Carrying Handle
- Pump Handle
- Skydrol Resistant Yellow Paint
- Operation & Maintenance Manual
- Certificate of Conformance
- Load Test Reports
- Factory New - 12 Month Written Warranty
Product Data Sheet:
