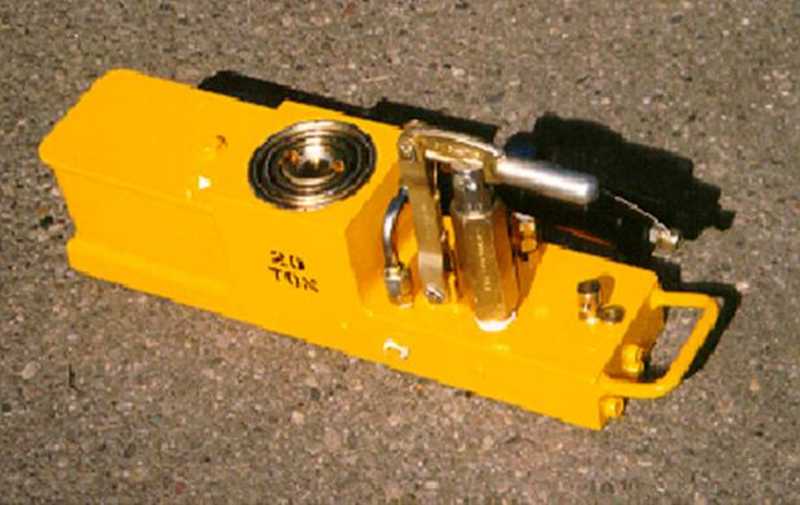

Hand Carry Axle Jack 20 Ton Capacity

Model #: 9473-010
Our Hand Carry Axle Jacks are designed to meet jacking specifications for normal tire/wheel and brake replacement, and in most cases for both main and nose landing gears for most business, commuter and wide body airplanes. This jack provides maximum capacity within a light weight and compact configuration for ease of carrying and transporting to the jacking site. Our Hand Carry Axle Jacks are completely self-contained with manual hand pump. Our Model 9346-010 contains an air powered pumping unit and a handling and positioning dolly.
Product Information
Minimum Height 5.0 inches 127 mm
Hydraulic Lift 8.25 inches 210 mm
Screw Extension 2.50 inches 64 mm
Maximum Height 15.75 inches 400 mm
Width 4.0 inches 102 mm
Length 17.0 inches 432 mm
Max. Height of Rocker Arm 8.5 inches 216 mm
Net Weight (Est.) 55 lb 25 kg

Standard Features
  • 20 Ton Capacity
  • Manual Hand Pump
  • External Pressure Relief Valve Assembly
  • Carrying Handle
  • Pump Handle
  • Skydrol Resistant Yellow Paint
Documentation
  • Operation & Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 12 Month Written Warranty

Product Data Sheet:
  Download PDF
