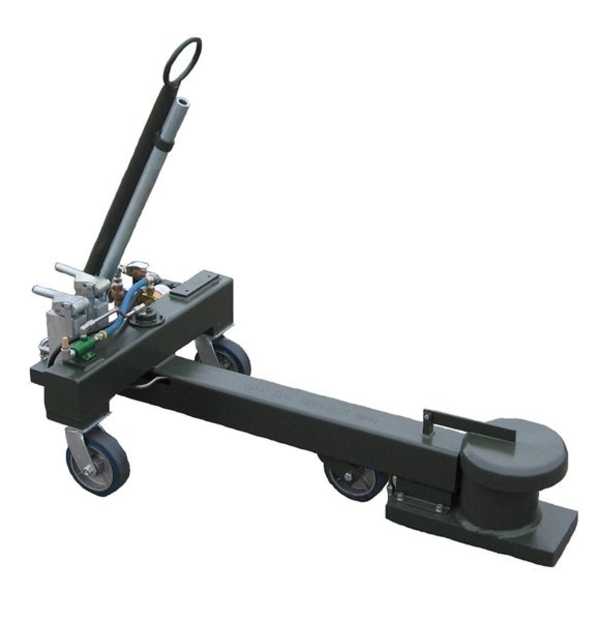

(click to enlarge)
Single Acting Alligator Axle Jack 35 Ton Capacity
Model #: 3507-56Our Single-Acting Alligator Axle Jack is designed for normal Wheel/Tire and Brake Changes. The cylinder head is mounted on a T-frame with three casters and comes with Manual and Air Powered Pumping Units. It is also available with an Optional Pressure Gauge Assembly. The Evac-U-Tract™ feature utilizes the air or nitrogen supply that is being used to raise the jack. Once activated, the air supply automatically retracts the ram back down inside the cylinder assembly. This retraction will facilitate the easy removal of the axle jack out from under the aircraft jacking point. This same retraction permits the use of the cylinder rain cover which protects the cylinder assembly from physical and environmental damage.
| Product Information | ||
| Minimum Height | 7.0 inches | 178 mm |
| Hydraulic Lift | 12.0 inches | 305 mm |
| Screw Extension | 3.5 inches | 89 mm |
| Maximum Height | 22.5 inches | 572 mm |
| Width of Base | 7.0 inches | 178 mm |
| CL Cylinder to End of Base | 6.25 inches | 159 mm |
| Depth of Base | 40.0 inches | 1,016 mm |
| Length | 54.0 inches | 1,372 mm |
| Width | 26.0 inches | 660 mm |
| Net Weight (Est.) | 450 lb | 204 kg |
Standard Features
- 35 Ton Single-Acting Cylinder
- Dual Manual Hand Pumps
- Air Powered Pumping Unit
- Evac-U-Tract™- Air Assisted Ram Retraction
- Spring Loaded Caster, Cylinder Lowering
- 6" Diameter Casters
- Tow Bar Assembly
- Skydrol Resistant Yellow Paint
- Operation & Maintenance Manual
- Certificate of Conformance
- Load Test Report
- Factory New - 12 Month Written Warranty
Product Data Sheet:
