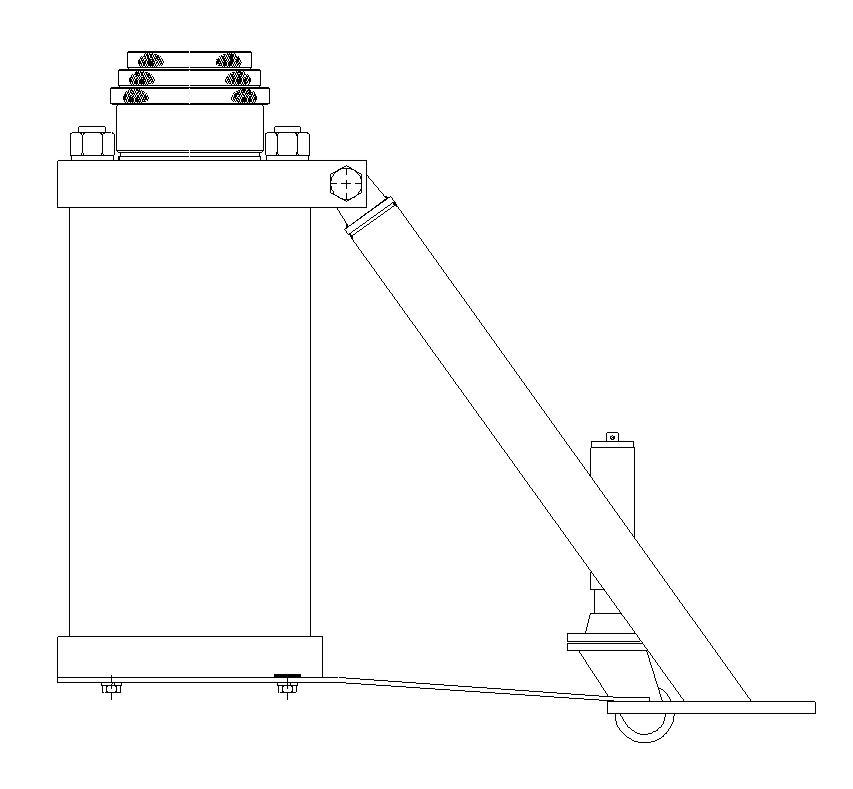

Universal Tripod 3 Stage Jack 12 Ton Capacity

Model #: 1228-35(3)
Our Universal Height Tripod Jacks are used on and for a variety of aircraft jacking applications during normal aircraft maintenance checks. These jacks provide the customer with a variety of low minimum height tripod jacks with two stages of hydraulic lift for low and high wing, nose and tail jacking applications. They are designed and built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service. The automatic safety by-pass valve prevents the lifting of a load greater than the capacity of the jack. Threaded rams with mechanical lock nuts prevent lowering of the jack under load in case of hydraulic leakage. Our Universal Tripod Jacks meet or exceed all known commercial and/or military requirements and specifications, and are cycle tested, load tested and proof-load tested to ensure the jack’s hydraulic and structural integrity. We guarantee our customer a quality and dependable product and assure them of our continued product support regardless of the age of the jack.
Product Information
Vertical Capacity 12.0 10.9
Minimum Height 28.0 711
Hydraulic Lift 45.0 1143
Screw Extension 12.0 305
Max Extended Height 85.0 2159
Net Weight (Est) 250 113
Crated Weight (Est) 300 136
Create Dimensions 42x42x32 1067x1067x813
Cu Ft Crated 32.6 .92

Standard Features
  • Three (3) Hydraulic Stages with Mechanical Lock Nuts
  • Air Pump and Hand Pump for ease of operation
  • Skydrol Resistant Yellow Paint or to customer specifications
  • Documentation
    • Operation and Maintenance Manual
    • Certificate of Conformance
    • Load Test Reports
    • Factory New - 36 Month Written Warranty
    Item Download:
    Detailed Specifications - PDF
