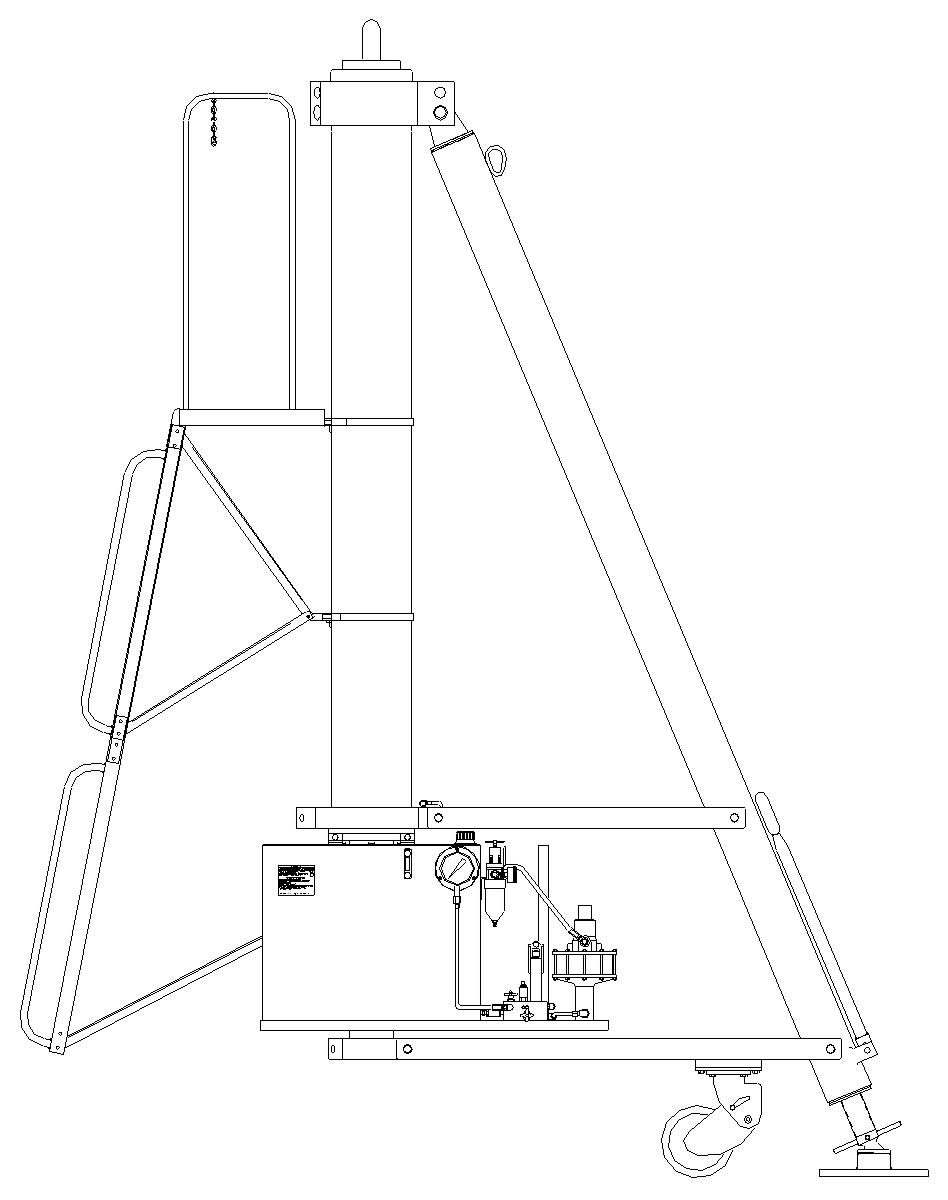

Fixed Height Tripod Jack

Model #: 80155-35
Standard Features Constructed for ease of assembly, operation and maintenance Manifold Hydraulics - includes Manual & Air Powered Pumping Units, Dual Reading Pressure Gauge Assembly (Reading in Tons/PSI) and External Relief Valve Steel Reservoir with sight gauge. Also includes a hydraulic isolation valve. Mechanical Lock Nut Operator Platform/Ladder Assembly Tow Bar Assembly Spring Loaded Swivel Casters with Caster Locks (Maximum towing speed 5 MPH) Adjustable Leveling Footpads with Bubble Level Protective Cylinder Rain Cover Skydrol Resistant Yellow Paint or to customer specifications Documentation Operation and Maintenance Manual Certificate of Conformance Load Test Reports Factory New - 36 Month Written Warranty
Product Information
Minimum Height 155 3937
Vertical Capicity 80.0 72.8
Hydraulic Lift 71.0 1803
Screw Extension 12.0 305
Maximum Extended Height 238.0 6045
Crate Dimensions Estimate
Crated Weight Estimate
Cubic Feet Crated Estimate

Standard Features
  • Constructed for ease of assembly, operation and maintenance
  • Manifold Hydraulics - Includes Manual & Air Powered Pumping Units, Dual Reading Pressure Gauge Assembly (Reading in Tons/PSI) and External Relief Valve Assembly
  • Steel Reservoir with sight gauge. Also includes a hydraulic isolation valve.
  • Mechanical Lock Nut
  • Operator Platform/Ladder Assembly
  • Tow Bar Assembly
  • Spring Loaded Swivel Casters with Caster Locks (Maximum towing speed 5 MPH)
  • Adjustable Leveling Footpads with Bubble Level
  • Protective Cylinder Rain Cover
  • Skydrol Resistant Yellow Paint or to customer specifications
Documentation
  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Reports
  • Factory New - 36 Month Written Warranty
Item Download:
Detailed Specifications - PDF
