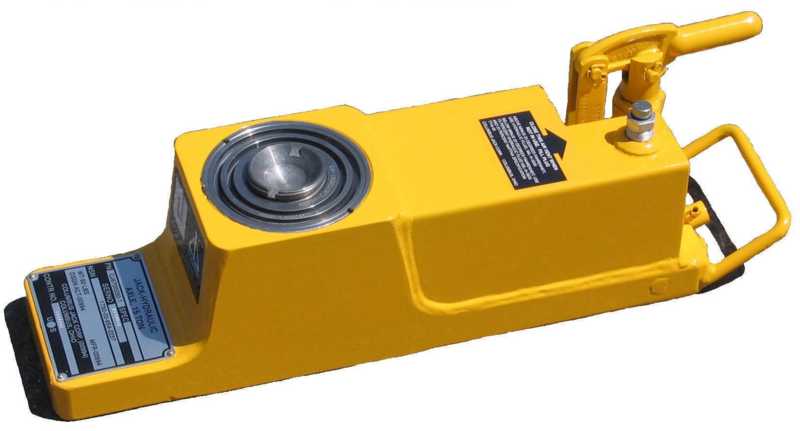

Hand Carry Axle Jack 15 Ton Capacity
Model #: 1504-50Our Hand Carry Axle Jacks are designed to meet jacking specifications for normal tire/wheel and brake replacement. These self-contained jacks come with a manual hand pump and provide maximum capacity within a lightweight and compact configuration for ease of carrying and transporting to the jacking site.
| Product Information | ||
| Cage Code | 00994 | |
| NSN | 1730-00-854-2237 | |
| Vertical Capacity | 15.0 ton | 13,608 kg |
| Minimum Height | 4.75 inches | 121 mm |
| Hydraulic Lift | 7.63 inches | 194 mm |
| Screw Extension | 2.56 inches | 65 mm |
| Maximum Height | 14.94 inches | 380 mm |
| Net Weight (Est.) | 50 lb | 23 kg |
| Overall Dimensions(L x W x H) | 21 x 9 x 11 inches | 533 x 229 x 279 mm |
